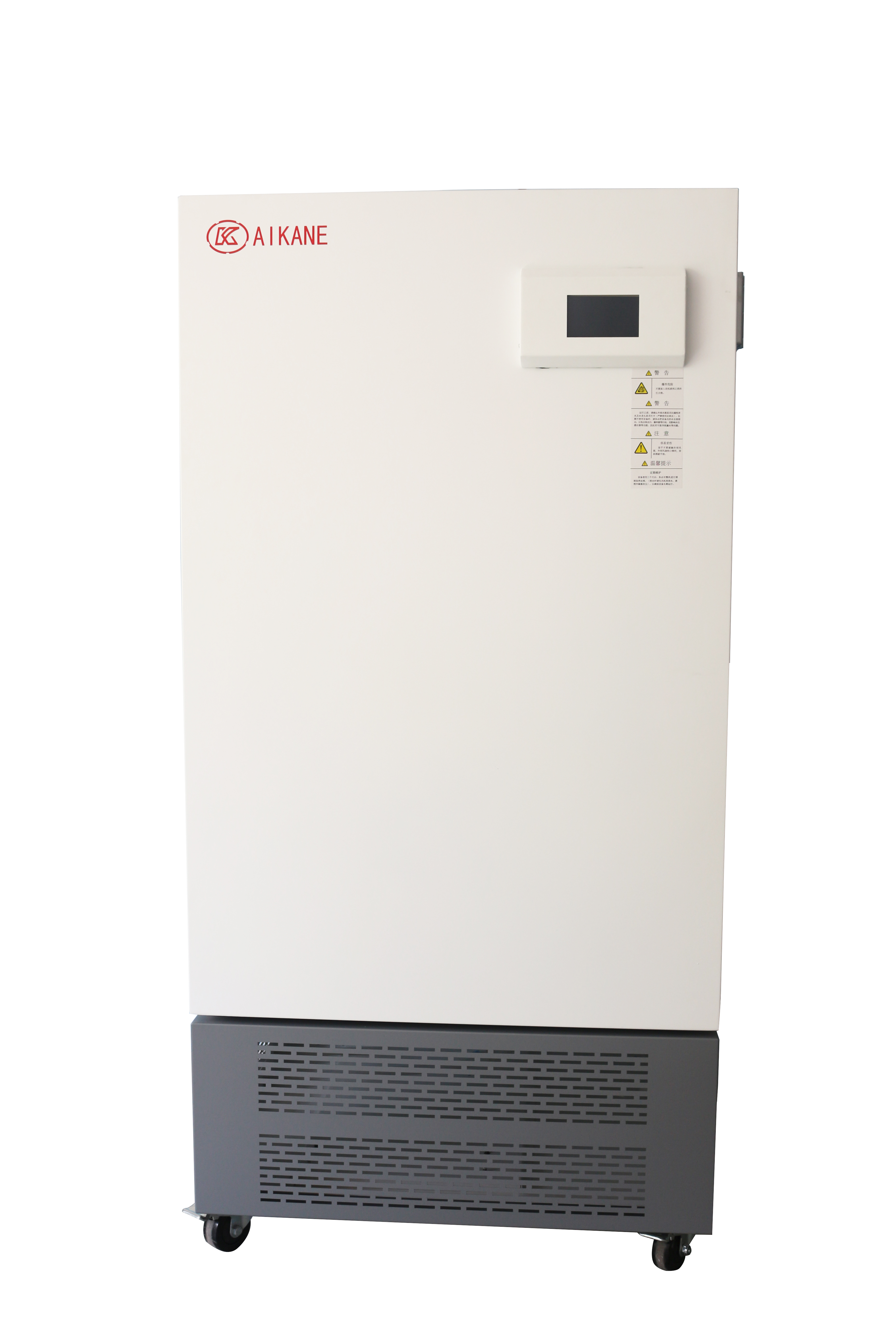

Biochemical incubator
Application scope
Low-temperature biochemical incubator: It applies to constant temperature test, environmental test, low-temperature culture, water body analysis, BOD measurement, etc. It is widely used in such research and application fields as health care, biopharmaceuticals, agricultural research and environmental protection.
了解更多
-The 4.3’’true color touch panel, smart operating system and high-performance processor contribute to easy and simple operation.
-Fuzzy PID control and programmed multi-section parameter setting.
-Precise timing function with week, day and hour modes.
-With the quick upgrade system, system program can be directly upgraded with USB.
-The system has automatic storage function, and can store 250 thousand data.
-Imported Danfoss (SECOP) compressor and German EBM condenser fan.

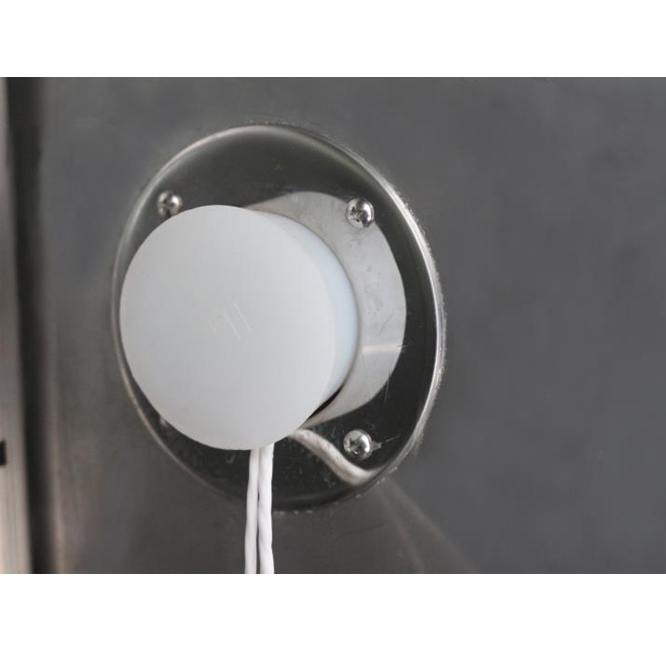

-Data monitoring standard access port (Ø50 mm) on the right, with silica gel plug.
-With CFC/HFC-free polyurethane foam as insulation material of the chamber, excellent thermal insulation and anti-condensation performance is realized.

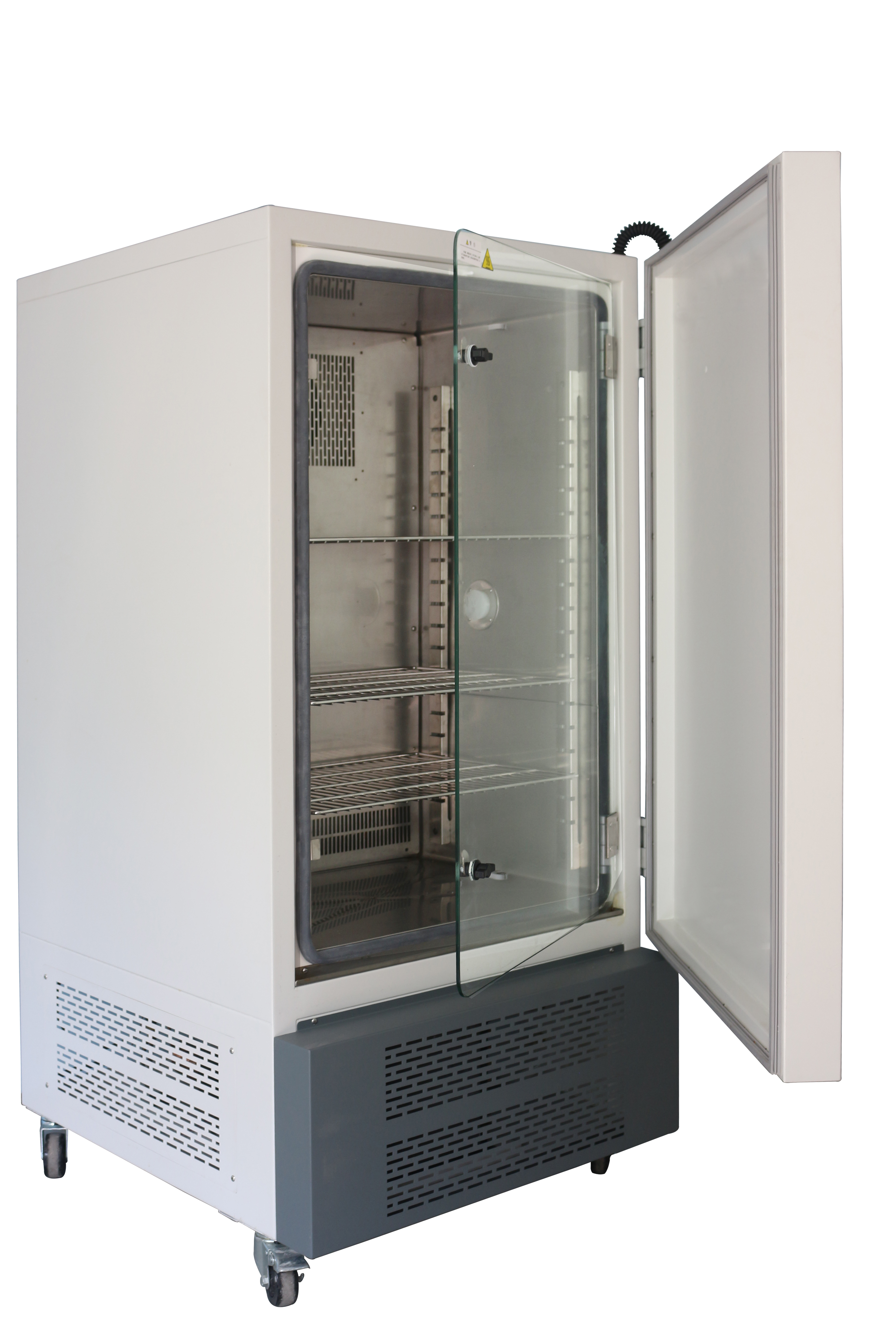

-Samples can be observed through the inner glass door, thus avoiding affecting temperature and humidity due to door opening.-Flexible stainless steel -shelf system is easy to take out for cleaning and shelves have no sharp edges.
-Stainless steel liner (1.4301 / ASTM 304) and round corner design facilitate cleaning.
-Screensaver and coded lock prevent accidental operation.
-USB and RS485 interfaces.
-Chinese and English menu switch.
Technical parameter
Product model | KFB 250 | KFB 460 |
Control mode/program | PID fuzzy logic control, common/program fuzzy operation | |
Temperature range | -10℃～+80℃(-20℃～+80℃ -40℃～+80℃ is optional) | |
Temperature control accuracy | ±0.1 °C | |
Temperature uniformity at 25 °C | ±0.5 | ±0.5 °C |
Humidity fluctuation | ±1.5RH | |
Overall size (mm) W*H*D | 750*1,578*837 | 975*1,848*887 |
Liner size (mm) W*H*D | 580*980*440 | 795*1,180*490 |
Net weight | Approx. 196KG | Approx. 270KG |
Effective volume | 250L | 460L |
Total power of heating and humidification | 2200W | 2500W |
Refrigerating power • refrigerant | 250W.R134A | 550W.R404A |
Temperature and humidity sensors | German HERAEUS temperature sensor and imported E+E humidity sensor | |
Working temperature | 5 °C-35 °C; recommended working temperature is 10 °C-30 °C, in order to obtain optimal performance. | |
Supply voltage | AC-220 V 50/60 HZ | |
Safety device | Autostart, autostop, power ON recovery, timing run, compressor over-voltage protection, over-temperature alarm, electric leakage protection, door open protection, sensor anomaly alarm | |
(Standard) tray | 3 layers (addable) | 4 layers (addable) |
* Performance parameter testing under idle conditions: 25 °C ambient temperature
* Product appearance parameters may be changed without notice and product appearance may show deviations due to photography, printing and other reasons.
Tip: Please carefully read the instruction manual before use.
