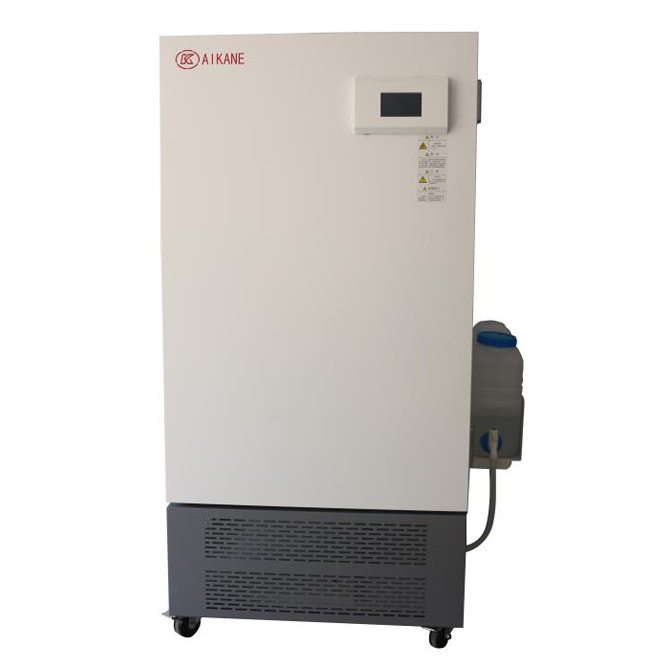

Mould incubator
Application scope
It applies to environmental protection, health and disease prevention, agriculture and livestock, drug test, aquatic product and other scientific research fields, water body analysis, BOD measurement, bacteria, mould and microbial culture, storage, plant cultivation, breeding and other applications.
了解更多
Product features
-The 4.3’’true color touch panel, smart operating system and high-performance processor contribute to easy and simple operation.
-Fuzzy PID control and programmed multi-section parameter setting.
-Precise timing function with week, day and hour modes.
-With the quick upgrade system, system program can be directly upgraded with USB.
-The system has automatic storage function, and can store 250 thousand data.
-Imported Danfoss (SECOP) compressor and German EBM condenser fan.

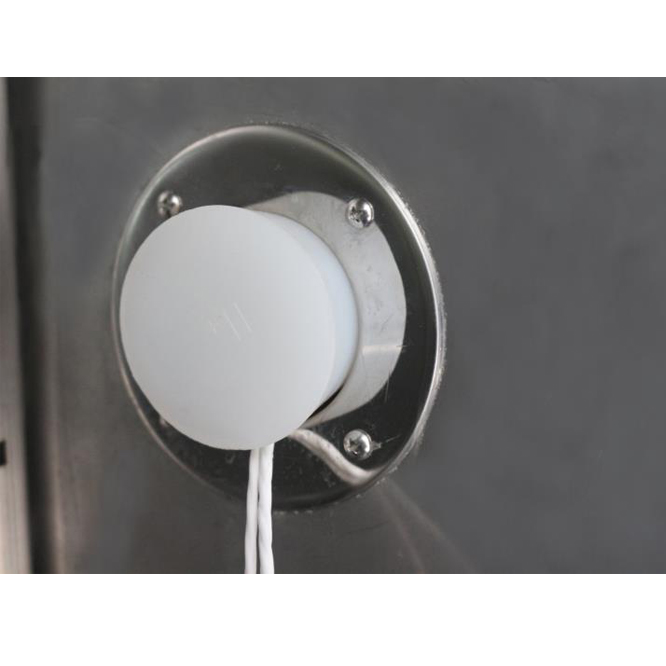

-Data monitoring standard access port (Ø50 mm) on the right, with silica gel plug.
-With CFC/HFC-free polyurethane foam as insulation material of the chamber, excellent thermal insulation and anti-condensation performance is realized.

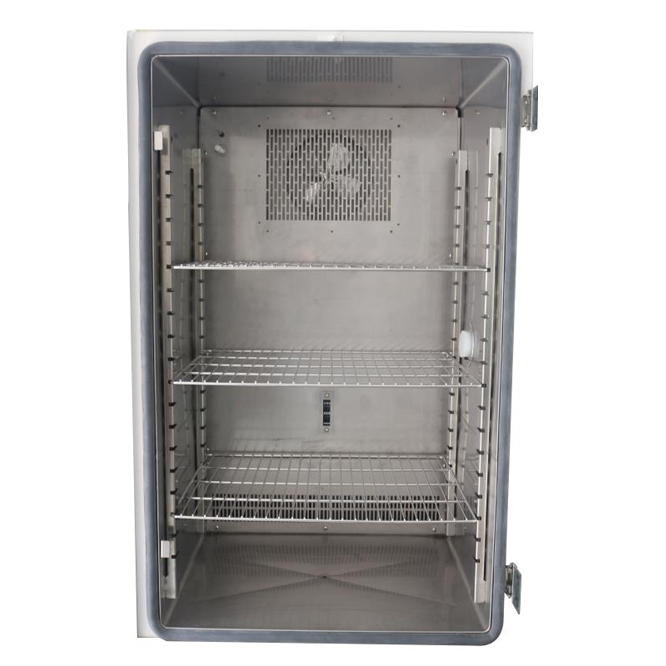

-Samples can be observed through the inner glass door, thus avoiding affecting temperature and humidity due to door opening.-Flexible stainless steel -shelf system is easy to take out for cleaning and shelves have no sharp edges.
-Stainless steel liner (1.4301 / ASTM 304) and round corner design facilitate cleaning.
-Screensaver and coded lock prevent accidental operation.
-USB and RS485 interfaces.
-Chinese and English menu switch.
Technical parameter
Product model | KFG 250 | KFG 460 |
Control mode/program | PID fuzzy logic control, common/program fuzzy operation | |
Sterilization method | Ultraviolet bactericidal | |
Temperature range | -10℃～+80℃(-20℃～+80℃ -40℃～+80℃ is optional) | |
Temperature control accuracy | ±0.1 °C | |
Temperature uniformity at 25 °C | ±0.5 | ±0.5 °C |
Humidity fluctuation | ±1.5RH | |
Overall size (mm) W*H*D | 750*1,578*837 | 975*1,848*887 |
Liner size (mm) W*H*D | 580*980*440 | 795*1,180*490 |
Net weight | Approx. 196KG | Approx. 270KG |
Effective volume | 250L | 460L |
Total power of heating and humidification | 2200W | 2500W |
Refrigerating power • refrigerant | 250W.R134A | 550W.R404A |
Temperature and humidity sensors | German HERAEUS temperature sensor and imported E+E humidity sensor | |
Working temperature | 5 °C-35 °C; recommended working temperature is 10 °C-30 °C, in order to obtain optimal performance. | |
Supply voltage | AC-220 V 50/60 HZ | |
Safety device | Autostart, autostop, power ON recovery, timing run, compressor over-voltage protection, over-temperature alarm, electric leakage protection, door open protection, sensor anomaly alarm | |
(Standard) tray | 3 layers (addable) | 4 layers (addable) |
* Performance parameter testing under idle conditions: 25 °C ambient temperature
* Product appearance parameters may be changed without notice and product appearance may show deviations due to photography, printing and other reasons.
Tip: Please carefully read the instruction manual before use.
